LYNCCN WAY100.86-V40 High Performance Press Brake Die For Accurate Metal Bending
| Tempat asal | Anhui, Cina |
|---|---|
| Nama merek | LYNCCN |
| Sertifikasi | ISO9001 |
| Nomor model | Way100.86 |
| Kuantitas min Order | 835mm*3pcs |
| Harga | Dapat dinegosiasikan |
| Kemasan rincian | Kotak kayu |
| Waktu pengiriman | 30 hari |
| Syarat-syarat pembayaran | T/t |
| Menyediakan kemampuan | 500 Potongan/potongan per Bulan |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Kategori produk | Tekan rem mati | Nama Produk | Rem tekan kinerja tinggi die untuk lentur logam yang akurat |
|---|---|---|---|
| V Opening | 40mm | Aplikasi | Digunakan untuk Press Brake |
| Lebar | 55mm | Bahan | 42crmo |
| Tinggi | 120mm | Kekerasan | HRC50 ± 2 |
| Sudut | 86 ° | Sedang mengemas | Kasing kayu |
| Menyoroti | High Performance Press Brake Die,Accurate Metal Bending Press Brake Die,LYNCCN Custom Press Brake Tooling |
||
Deskripsi Produk
Press brake tooling helps bend sheet metal into angles. It works with force from the machine’s ram. Different press brake dies are used based on thickness and shape.

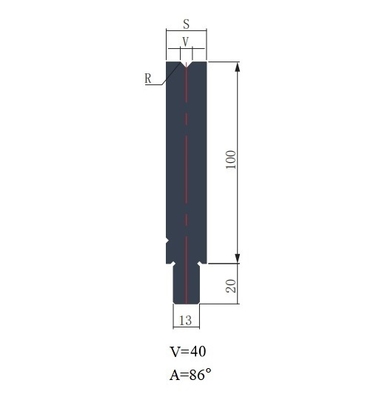

Technical Parameters:
| Brand | LYNCCN |
| Product Type | Press Brake Single V Die |
| V Opening | V40 |
| Angle | 86° |
| Width | 55mm |
| Height | 120mm |
| Max. Load | 100T/M |
| Material | 42CrMo |
| Hardness | HRC50±2 |
| Length | 550mm/500mm |
| Packing | Wooden Box |
| Heat Treatment | Induction Hardening |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling is the key tool in household appliance fabrication. Shapes outer shells for ovens, washers, and fridges. Supports high-volume, consistent output.
