LYNCCN WAY100.84 V12 Single V Die Press Brake Tooling
| Tempat asal | Anhui, Cina |
|---|---|
| Nama merek | LYNCCN |
| Sertifikasi | ISO9001 |
| Nomor model | Way100.84-V12 |
| Kuantitas min Order | 500mm*3pcs |
| Harga | Dapat dinegosiasikan |
| Kemasan rincian | Kotak kayu |
| Waktu pengiriman | Perundingan |
| Syarat-syarat pembayaran | T/t |
| Menyediakan kemampuan | 500 buah per bulan |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama Produk | Tekan Rem Tooling Single V Die | V-Opening | V12 |
|---|---|---|---|
| Bahan | 42crmo | Sudut | 84 ° |
| Kekerasan | HRC50 ± 2 | Lebar | 25mm |
| Perlakuan panas | Pengerasan induksi | Tinggi | 120mm |
| Sedang mengemas | Kotak kayu | Max. Memuat | 100t/m |
| Menyoroti | Press Brake Die custom,Single V Press Brake Die,Single V Die Press Brake Tooling |
||
Deskripsi Produk
Product Description:
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

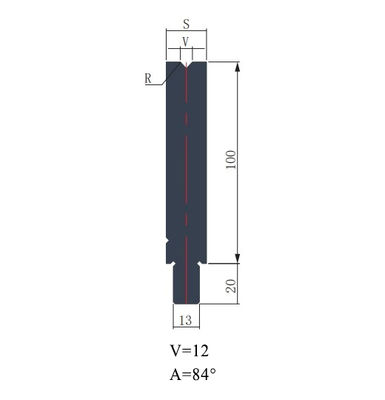

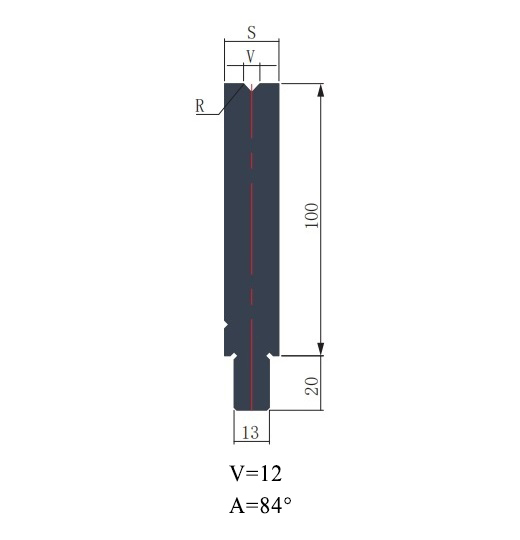

Technical Parameters:
| Product Type | Single V Die |
| V-opening | V12 |
| Angle | 84° |
| Height | 120mm |
| Width | 25mm |
| Material | 42CrMo |
| Hardness | HRC50±2 |
| Heat Treatment | Induction Hardening |
| Length | 550mm/500mm |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
