LYNCCN WAY100.80 V50 Euro Style Press Brake Tooling V Die
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama Produk | WAY100.80 V50 Perkakas Rem Tekan Gaya Euro V Die | V-Opening | V50 |
|---|---|---|---|
| Perlakuan Panas | Pengerasan induksi | Sudut | 80 ° |
| kekerasan | HRC50 ± 2 | Lebar | 65mm |
| Max. Memuat | 100t/m | Tinggi | 120mm |
| Sedang mengemas | Kotak Kayu | Bahan | 42crmo |
| Menyoroti | Euro press brake die,press brake die for hydraulic press,brake dies for hydraulic press |
||
Deskripsi Produk
Product Description:
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

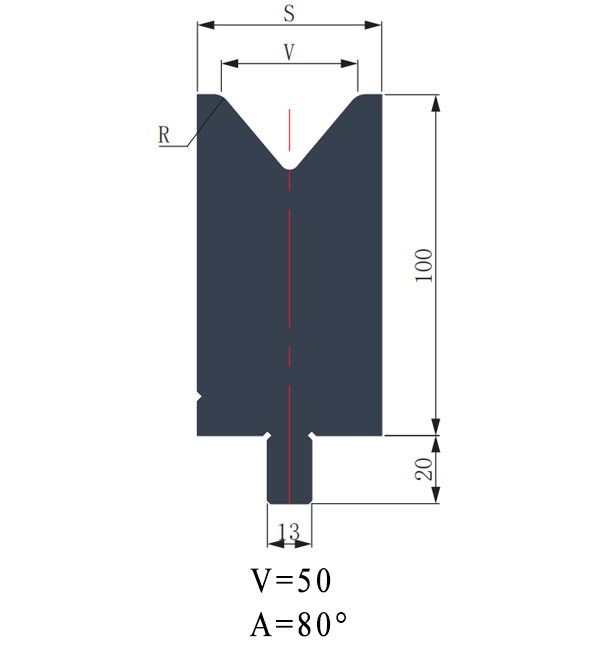

Technical Parameters:
| Product Type | Euro Style Press Brake Tooling V Die |
| V-opening | V50 |
| Angle | 80° |
| Width | 65mm |
| Height | 120mm |
| Material | 42CrMo |
| Length | 550mm/500mm |
| Hardness | HRC50±2 |
| Heat Treatment | Induction Hardening |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
