LYNCCN WAY100.80 V80 Custom Hydraulic Press Brake Tooling Single V Die
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama Produk | LYNCCN WAY100.80 V80 Perkakas Rem Tekan Hidraulik Kustom Single V Die | Merek | Lynccn |
|---|---|---|---|
| Kategori Produk | Tekan rem mati | V Opening | 80mm |
| Lebar | 100mm | Kekerasan | HRC50 ± 2 |
| Bahan | 42crmo | Tinggi | 120mm |
| Sudut | 80 ° | Sedang mengemas | Kotak Kayu |
| Menyoroti | Single V Hydraulic Press Brake Tooling,Custom Hydraulic Press Brake Tooling,LYNCCN WAY100.80 V80 Tooling |
||
Deskripsi Produk
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

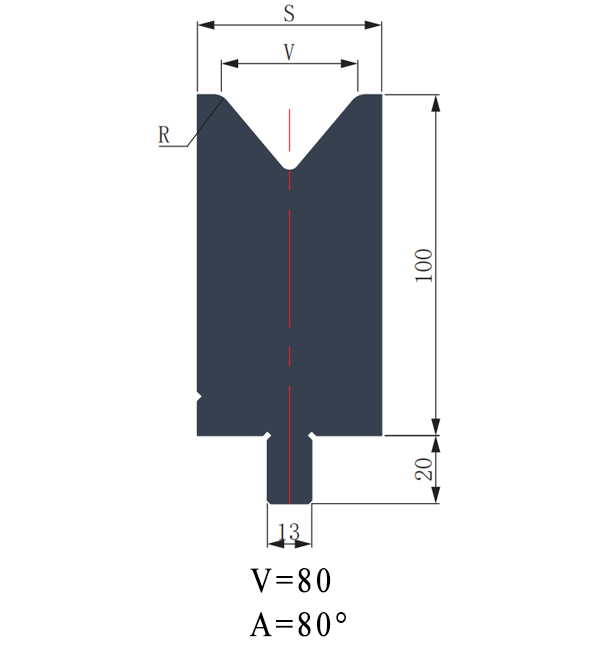

Technical Parameters:
| Product Type | Press Brake Die |
| Length | 550mm/500mm |
| Brand | LYNCCN |
| Width | 100mm |
| Height | 120mm |
| Angle | 80° |
| V Opening | 80mm |
| Hardness | HRC48-52 |
| Heat Treatment | Induction Hardening |
| Material | 42CrMo |
| Max. Load | 100T/M |
| Packing | Wooden Box |
| Delivery Time | 30 days |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.
